DESIGN

dimensions of the plan are similar to project WILDSIDE.

Dimensions of the plan are similar to project WILDSIDE.


Each piece identified so it can be bent to order

Each piece identified so it can be bent to order


model may be spun 3-D

model may be spun 3-D

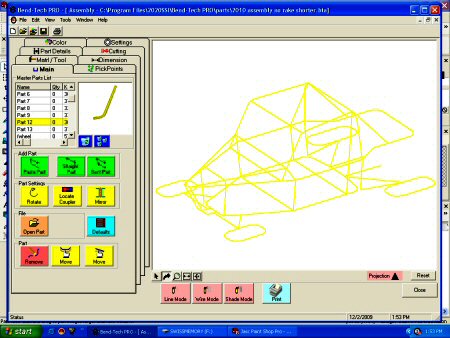

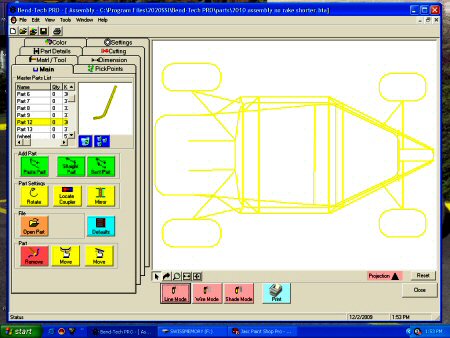

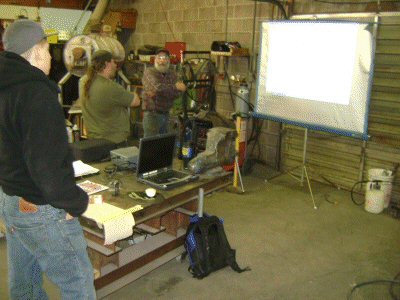

BendTech Pro Software with the help of ASAP FABRICATION

  • The Honker crew designed the chassis in the BT program and ASAP FAB is helping us make it AS WE DESIGNED with some fab techniques from years of experience using our Protools One Shot bender and their ProBend 105 for the angles over 120 degrees.

  • Trusting the computer is HARD but rewarding

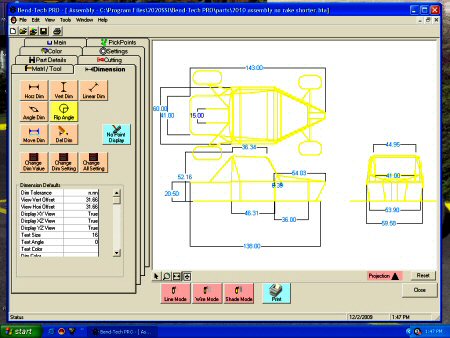

BR tells you how long to cut the tube and where to START each bend

BR tells you how long to cut the tube and
where to START each bend


s

measurements are lined up on each tube before the sequence
of bending begins (most tubes have 2 or less bends)

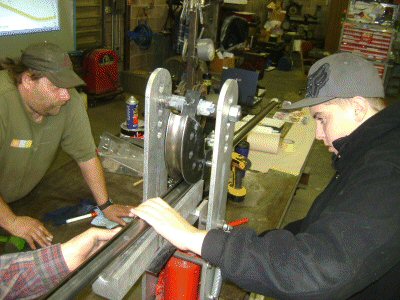

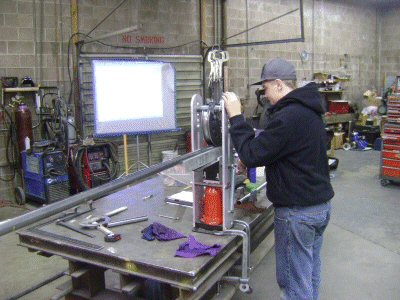

curtis bending the long side front tube

curtis bending the long side front tube

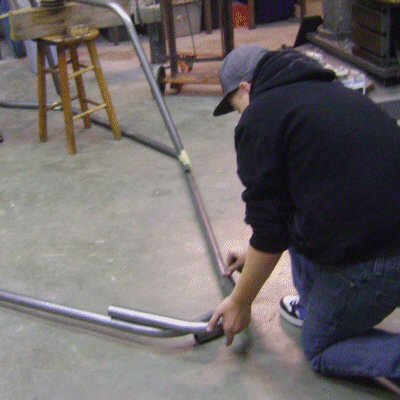

upper hoop for the roll cage

upper hoop for the roll cage


imagine a floor.. 20 inches below.

imagine a floor.. 20 inches below.

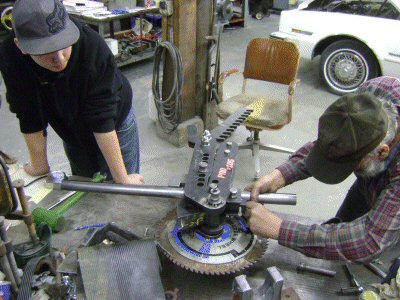

bending the nose at 120 degrees

bending the nose at 120 degrees

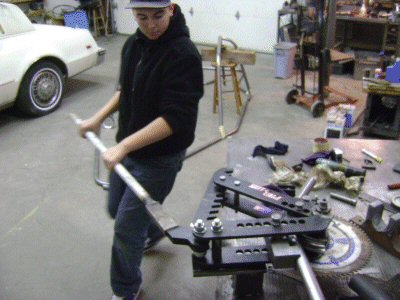

Manual rotary bender with a long cheater

Manual rotary bender with a long cheater

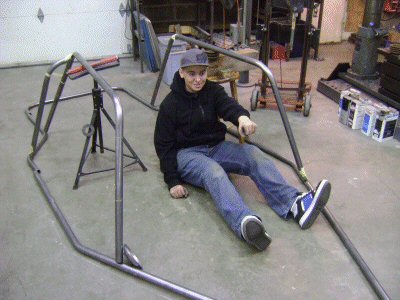

YES.. it fits.. just like the BT software said!

YES.. it fits.. just like the BT software said!
